Cards for Penta 720 and DAD AX32

I/O and Processing Cards and Modules

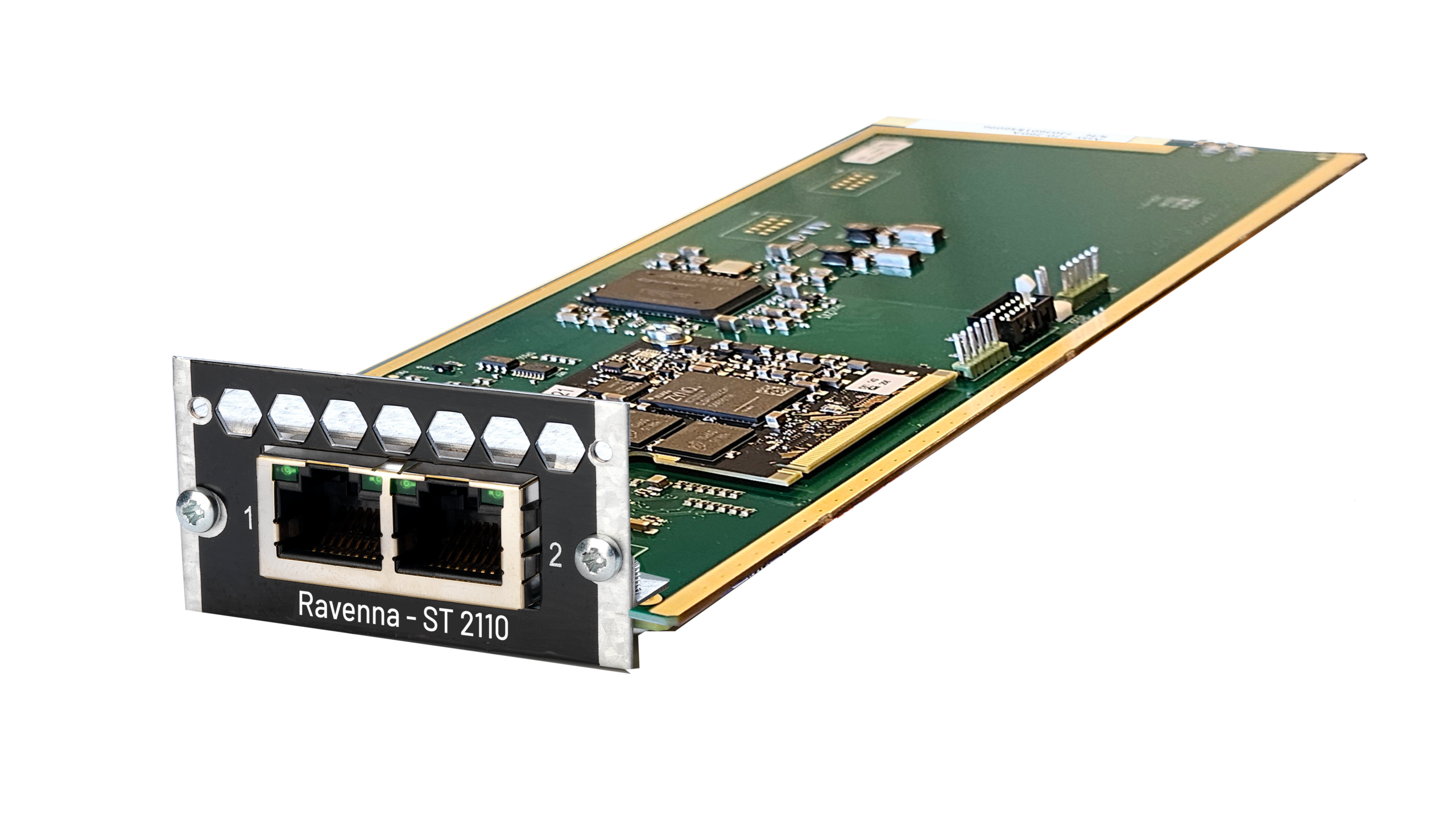

Penta 720 and DAD AX32 I/O and DSP Cards

Both the Penta 720 and the DAD AX32 mainframe can accept the same option cards and modules allowing each system to meet specific requirements. Each frame can accept up to 8 option cards in any combination.

Analog Input

Two card types (Cards are physically identical). LINE card can be upgraded to MIC/LINE by license.

  • 8 ch. LINE input
  • 8 ch. MIC/LINE input – Features…
    • Phantom power
    • Mic pre gain
    • Phase invert
    • Selectable max. line input level
    • +9 dBu to +30 dBu in steps of 0.1 dB

Analog Output

  • 8 ch. LINE output
  • Selectable max. Output level
  • +9 dBu to +24 dBu in steps of 0.1 dB

8 AES Interface

  • 8 x AES I/O
  • 16 channels in and out
  • 8 cards = 128 channels in and out
  • Built-in Sample Rate Converter on input
  • Sample rates from 44.1 to 192 kHz

128 ch. Dante/AES67 Interface

  • 128 Channels in and out
  • 8 cards = 1024 channels
  • Built-in Sample Rate Converter
  • Enables connection between unsynchronised
  • Dante/AES67 networks
  • Enables connection between networks with different sample rates
  • Support for Dante Domain Manager
  • Support for AES67 with SAP
  • Network delay setting up to 21 msec.

Learn more about the 128-channel Dante Card…

Dual MADI Interface

  • 2 x MADI I/O
  • 2 x 64 channels
  • 8 cards = 1024 channels
  • Built-in Sample Rate Converter on input
  • Choice of physical interface
  • Select type of SFP module
  • Optical, MM or SM
  • Coax
  • Redundant mode
  • Auto switch-over in case of signal loss

Dual SDI Embedder/De-Embedder

  • 2 x SDI Embedder/de-embedder
  • 16 channels pr. SDI
  • 8 cards = 16 SDI Embedder/de-embedder
  • Supports SD, HD and 3G SDI
  • Built-in Sample Rate Converter
  • Routing of single channels

Dual 3G/HD/SD SDI audio embedder/de-embedder card for Penta 720 User Guide PDF

Penta - Audio Delay Processor

SPQ Card serves different functions for Penta 720 and DAD AX32, based on different software:
Penta 720 Audio Delay Processor

  • Programmable delay for up to 128 ch.
  • Individual delay pr. channel
  • 128 ‘channel-seconds of delay’
  • 128 ch. can be delayed up to 1 sec.
  • 1 ch. Can be delayed up to 128 sec.
  • Or any combination in-between
  • Delay can be set in steps of 1 sample
  • Suitable to achieve lipsync

DAD - SPQ Speaker Processing

SPQ Card serves different functions for Penta 720 and DAD AX32, based on different software:
DAD AX32 with DADman software

  • DSP/FPGA Card for AX32
  • Room Tuning with up to 16 Filters Per Channel
  • Bass Management with Support for Multiple Subs
  • 1024 IIR Filters
  • 128 channels @ 48 kHz
  • Sample Rates from 44,1 to 384 kHz
  • Adjustable Latency up to 800ms Per Channel
  • Speaker Match Between Various Immersive Audio Formats

Learn more DAD SPQ Card Speaker Processing …

Dante/AES67 Module

  • 64 ch. Dante interface
  • Support for AES67 with SAP
  • Support for Dante Domain Manager
  • Network delay setting up to 41 msec.

Dual MADI Module

  • 2 x MADI I/O
  • 2 x 64 channels
  • Choice of physical interface
  • Select type of SFP module
  • Optical, MM or SM
  • Coax
  • Redundant mode
  • Auto switch-over in case of signal loss
  • Can operate as dual HotLink
  • 2 x 128 ch.
